Principle and Construction

A tray dryer is one of the simplest and most widely used drying equipment in laboratories and industries for drying solid materials, granules, powders, and wet products. It operates on the principle of convective heat transfer, where hot air is circulated over the material placed in trays, and the moisture is evaporated by the transfer of heat from the air to the material. The humid air is then continuously removed from the dryer and replaced with fresh, dry air to maintain the drying rate.

Tray dryers are widely used in pharmaceutical, chemical, food, and textile industries due to their simplicity, uniform drying, and batch-type operation. They are ideal for drying materials that cannot be fluidized or need controlled temperature drying.

Principle of Operation

The working principle of a tray dryer is based on the uniform circulation of hot air to remove moisture by evaporation. The heat is transferred to the wet material by conduction and convection from the hot air flowing over and around it. The drying air picks up the evaporated moisture and carries it away through an exhaust system.

The rate of drying depends on the temperature, air velocity, humidity, and surface area of the material. Air is heated by electrical heaters or steam coils and then circulated through fans. The air circulation pattern (cross-flow or vertical flow) ensures uniform drying throughout all trays. The air inside the chamber is continuously replaced to maintain a low relative humidity, thereby promoting efficient drying.

Construction of a Tray Dryer

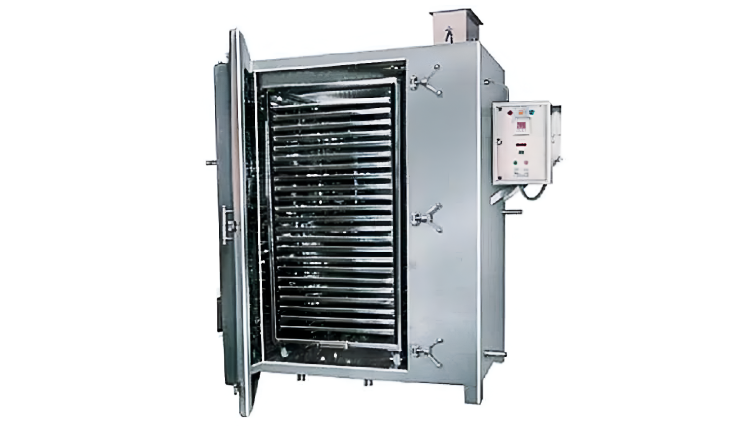

A tray dryer is a rectangular, box-shaped drying chamber made of stainless steel or mild steel and designed to hold multiple trays arranged in tiers. It consists of the following main components:

• Drying Chamber (Cabinet):
  The main body of the tray dryer is a thermally insulated chamber with a double-walled construction. The inner wall is made of stainless steel (SS 304 or SS 316) for corrosion resistance, while the outer wall is made of mild steel. The cavity between the two walls is packed with insulating material (like glass wool or mineral wool) to prevent heat loss. The chamber is fitted with airtight doors with gaskets to minimize air leakage.
• Trays:
  The drying chamber contains several rectangular trays, usually made of stainless steel, which hold the material to be dried. The trays are perforated or solid, depending on the type of product. Each tray rests on supporting racks or trolleys that slide into the dryer. The number of trays may vary from 6 to 96 or more, depending on the size and capacity of the dryer.
• Heating System:
  Heat is supplied to the dryer either by steam coils, electrical heaters, or hot water coils located within the chamber or the air ducts. The heating medium warms the air that passes over it, raising the drying air temperature to the desired level (typically 40°C to 100°C, depending on the material).
• Air Circulation System:
  The tray dryer is equipped with axial flow fans or blowers mounted at the top or rear of the chamber to circulate hot air uniformly throughout the trays. The fans ensure forced convection, improving heat transfer and drying rate. The air velocity is typically maintained between 2–5 m/s. The airflow may be horizontal, vertical, or a combination of both, depending on the design.
• Air Handling and Exhaust System:
  Fresh air enters through inlets, and moist air is expelled through dampers or exhaust ducts fitted with filters. The inlet and exhaust airflows are carefully balanced to maintain a steady-state drying environment. Some tray dryers also include recirculation ducts to reuse part of the hot air, improving thermal efficiency.
• Temperature Control System:
  The dryer includes thermostats or automatic temperature controllers to maintain uniform temperature throughout the drying chamber. Thermocouples monitor the temperature at various points to ensure product safety and consistent drying.
• Trolley System (in large dryers):
  In large industrial tray dryers, the trays are placed on movable trolleys that can be wheeled in and out of the drying chamber. This design facilitates easy loading and unloading, reducing handling time.
• Control Panel:
  The tray dryer is operated through a control panel equipped with switches, temperature indicators, timers, and safety devices. In advanced systems, PLC–HMI controls allow precise adjustment of temperature, air velocity, and drying time.
